Tuesday, February 25, 2014

Tumbling On …

Been on a roll of late. Decisions have been easy. Not so much deliberating. Just execution … and concentrated time.

I'm now the king of the hot melt gun. The crude tool allows for quick bulkhead spilling and many floor templates. After cutting the moulds to slip past the partial inhales, I used scrap wood strips to locate the hull laps and faces. Tracing to the plywood from there was a piece of cake.

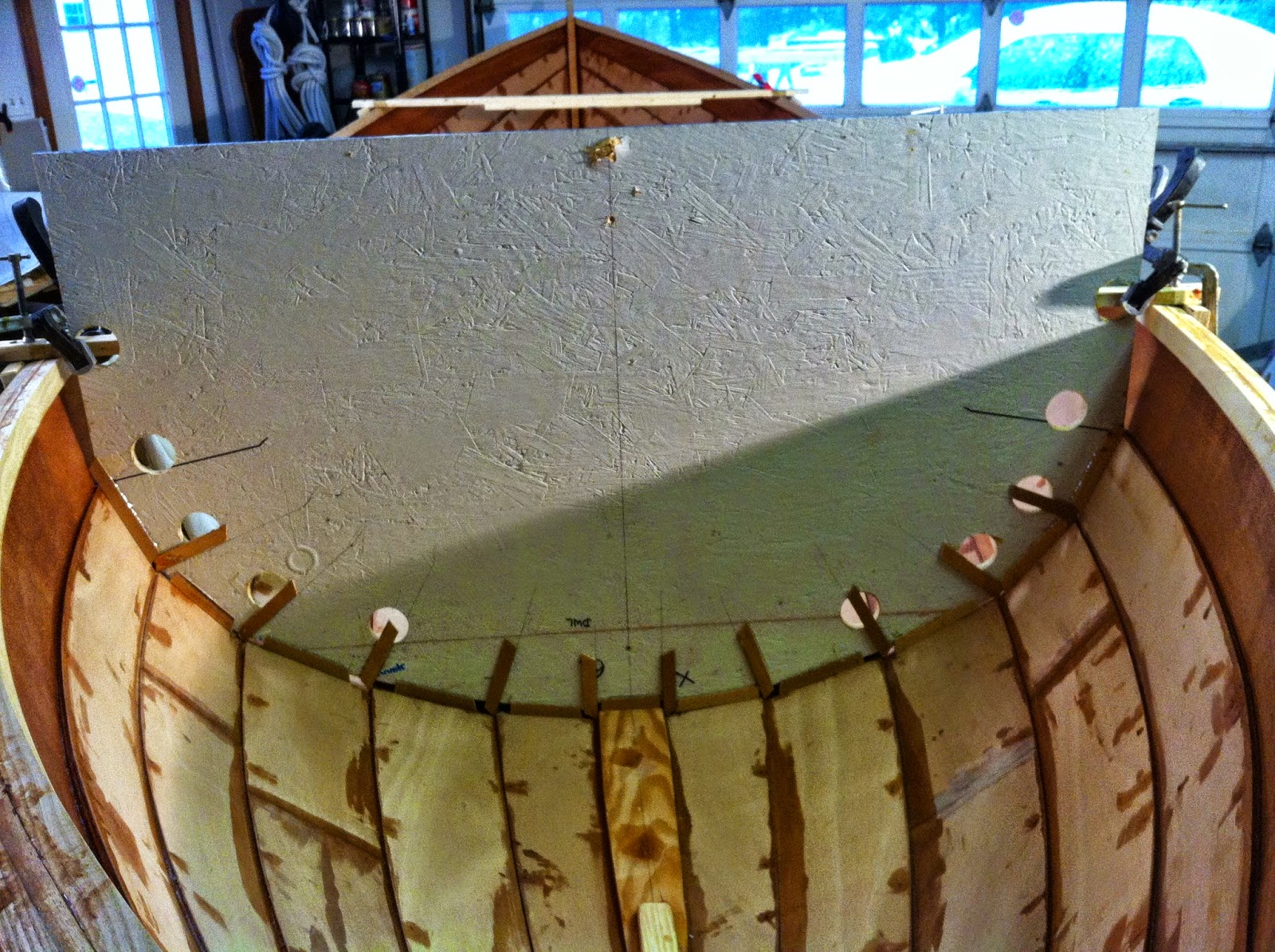

Station 6.

Glued scraps.

New bulkhead in place.

Station 2.

Points for tracing to ply.

From there I moved to the mast steps. Carving a few pieces of oak for the mizzen fried me. Alas, I came up with a better idea. The step is still supported by the keel, but I added a short floor to accept the lateral load. This all allows for any water dripping down the mast to pass into the bilge from the bottom of the step. Arrangement is quite stout.

Mast step and hot melt template.

Bolted floor ready for epoxy.

Floors with wide weeps.

I shortened the weeps from what was shown in the plans. They are still 1 1/2"x 3/8" and provide longer attachment to the hull.

Elliptical hatch in forward bulkhead.

Centercase is epoxied and clamped into place.

Main mast step and 1/2" copper drain tube.
A coating of epoxy was put on the interior of the centercase, drywall screws used to aid clamping, and the whole deal screwed to the keel. A cross support monitors the athwart ship level and helped keep the center case square while drying.

Oak thwart cutting.
 A band saw is now high on my list for next tool purchase. After my last jig saw blade snapped, I was left with a workout for the old wing. By hand makes a better square cut, but boy did it take time.
Assorted templates for all the floors.

Gluing up of thwart cleats.

Cleat close up.


View from the "forepeak".

All steps and floors are in. Both bulkheads secured with fat fillets (tongue depressor) on the inside and smaller outside (Popsicle stick).

Next up I think will be laying out the floor boards. This will allow for adding any turn button placement and locating side seat supports.  Moving on …







Wednesday, February 12, 2014

Cheeks, Arms, Mortise and Tenons

This part of the construction has been the most challenging. Many weeks ago I shaped the rudder foil (fine sanding and glassing still remain to be done). Weeks before that the rudder cheeks were cut from cherry and set aside. Now it must all come together … and work!

A model was made in SketchUp:

The hardware I selected rabbeted the rudder gudgeons and employed cherry wedges to align a 5/16" rod through stem gudgeons.


This allowed for precise location of rabbets needed in cheeks which were routed with a clamped fence.

router/fence set up.

Stop block to left.

Finished routed fit.


Single cheek and gudgeons.
Before cheeks and inner spacer (1" douglas fir) were glued, brass sheaves for control lines were located, and pilot holes for these lines were bored. One hole went astray and required plugging.

Rudder head clamp up. Rod positioned for square alignment.

For the tiller arm  a 5 degree "advance" was given to the arm instead of making it perpendicular to the rudder. Made of white oak, it is some hard stuff to cut, rasp, plane and file. This was really my first use of the spokeshave which proved a fun tool for sculpting the underside of the arm.

Rudder mortise and arm tenon.

Arm fitted after much filing.
A mortise in the tiller arm accommodates a wedge of cherry. This is an amazingly tight combination. The wedge has a hole for securing with line and I exaggerated the head for easier removal.

Wedge and sheave holes.

Tiller arm sweep.
One of the wonderful aspects of this build has been the ability to individualize it as one's own. Sculpting these pieces has been especially rewarding. A challenge accepted with some clean up still needed.
Next? I'm thinking mast steps and breasthooks.


Saturday, February 1, 2014

First Cruise (Closer to the Dream)



Went for a short sail today, or at least dreamt of doing so.

With some helpers, we flipped the hull last night. The volume in this boat amazed me. Since September I have been looking at her from the keel. Once flipped, it is a whole different perspective. I think she's got capacity to carry a tent and some grub.

All last evening I was chomping at the bit to start work on the interior, but hadn't decided on how to support the boat for work. I finally chocked her up with female moulds edged with a plywood cradle and carpet. The hull is very secure and I felt no give while walking and sitting in there.

Cradle with 1/4 ply scrap.

Installed with bracing.

I chose stations 2 and 6 for the cradles. This is where the 2 bulkheads will be installed. I clamped braces across the gunwales at stations 6, 4 and 2. Little effort was required to pull the beam in line. It had opened up about 3/4". This structural system is amazingly rigid.

Here are a few photos of the upright hull. I'm happy with the shear after all the contortions to view it upside down. I don't think I was more than 1/8" off from any of Iain's marks after it was all done.

Starboard.

Starboard quarter.

Further aft.

Interior looking aft.

Bow stem.


The rest of the afternoon was spent trimming the inhales to fit and experimenting with lining a hole with copper pipe bushing for wear. I'm inclined to have a simple hole in the bow stem in lieu of a "nose ring". I got good results with a parallel sided chunk of wood, but the stem is trapezoidal. I flared the pipe by wiggling a large screw driver in the hole and hammering with a grommet tool. More tests are going to be required before risking on the actual boat, but I like the appearance.

Test copper bushing.
