This part of the construction has been the most challenging. Many weeks ago I shaped the rudder foil (fine sanding and glassing still remain to be done). Weeks before that the rudder cheeks were cut from cherry and set aside. Now it must all come together … and work!
A model was made in SketchUp:
The hardware I selected rabbeted the rudder gudgeons and employed cherry wedges to align a 5/16" rod through stem gudgeons.
This allowed for precise location of rabbets needed in cheeks which were routed with a clamped fence.
 |
| router/fence set up. |
 |
| Stop block to left. |
 |
| Finished routed fit. |
 |
| Single cheek and gudgeons. |
Before cheeks and inner spacer (1" douglas fir) were glued, brass sheaves for control lines were located, and pilot holes for these lines were bored. One hole went astray and required plugging.
 |
| Rudder head clamp up. Rod positioned for square alignment. |
For the tiller arm a 5 degree "advance" was given to the arm instead of making it perpendicular to the rudder. Made of white oak, it is some hard stuff to cut, rasp, plane and file. This was really my first use of the spokeshave which proved a fun tool for sculpting the underside of the arm.
 |
| Rudder mortise and arm tenon. |
 |
| Arm fitted after much filing. |

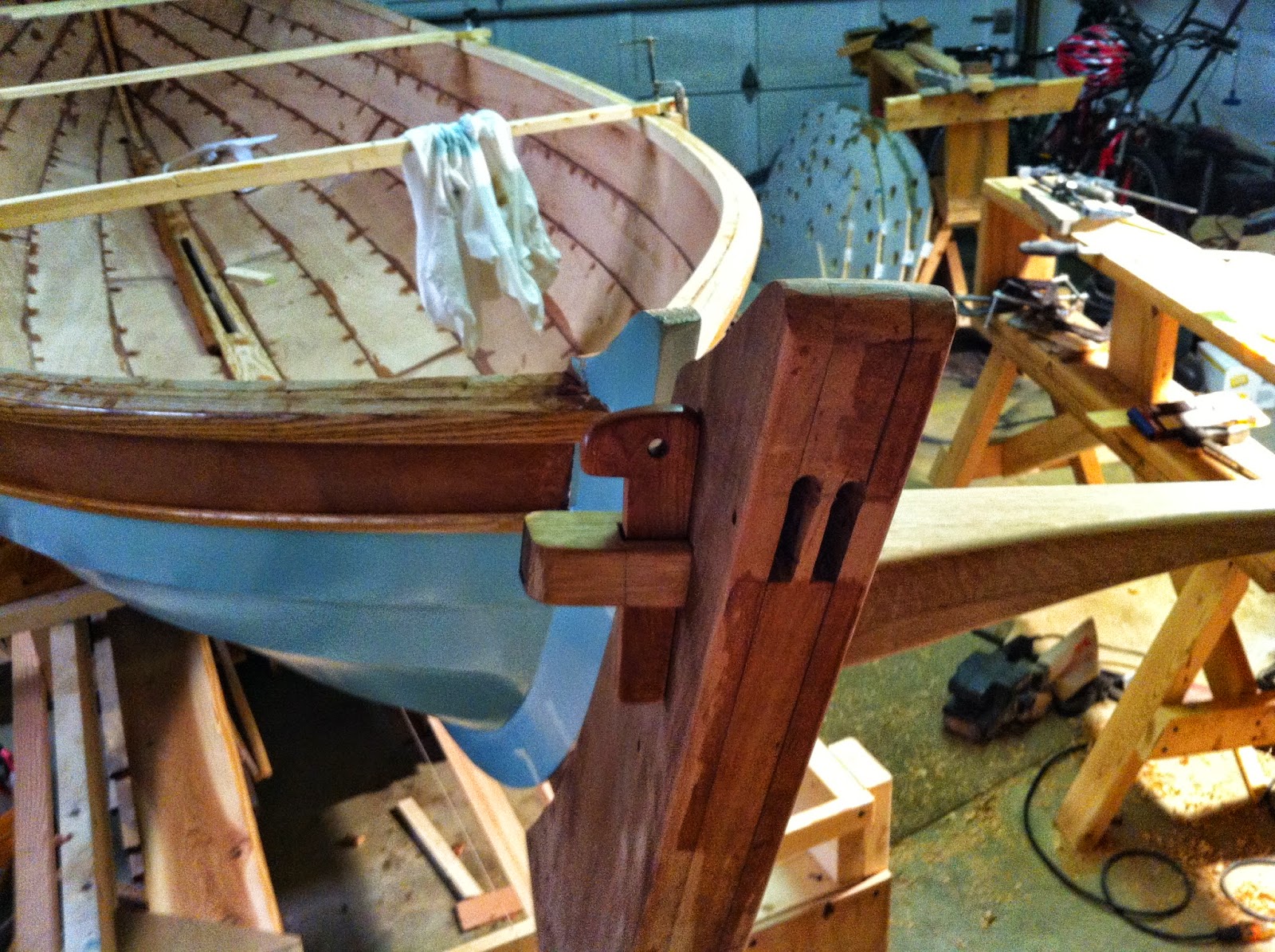

A mortise in the tiller arm accommodates a wedge of cherry. This is an amazingly tight combination. The wedge has a hole for securing with line and I exaggerated the head for easier removal.
 |
| Wedge and sheave holes. |
 |
| Tiller arm sweep. |
One of the wonderful aspects of this build has been the ability to individualize it as one's own. Sculpting these pieces has been especially rewarding. A challenge accepted with some clean up still needed.
Next? I'm thinking mast steps and breasthooks.
